How to install A Arc Fault Circuit Breaker / Interrupter Video

A Arc Fault Circuit Breaker / Interrupter AFCI

arc-fault-breaker How to install A Arc Fault Circuit Breaker / Interrupter Video

Arc fault circuit breaker┬átypes are now code. In the past is was up to the local building inspector. But times have changed and they are now code for bedrooms. Unlike CGFI outlets or breakers, those will protect you from electrical shock. AFCI’s are designed to detect and protect against electrical arc and fires.

So a arc fault circuit breaker (AFCI) prevents fires by detecting a unintended electrical arc and if so with trip the breaker. They are designed to distinguish the harmless arc during a normal flick of a switch or that spark you would see from the brushes from a electrical motor.

Besides, they save life’s and help protect our homes.

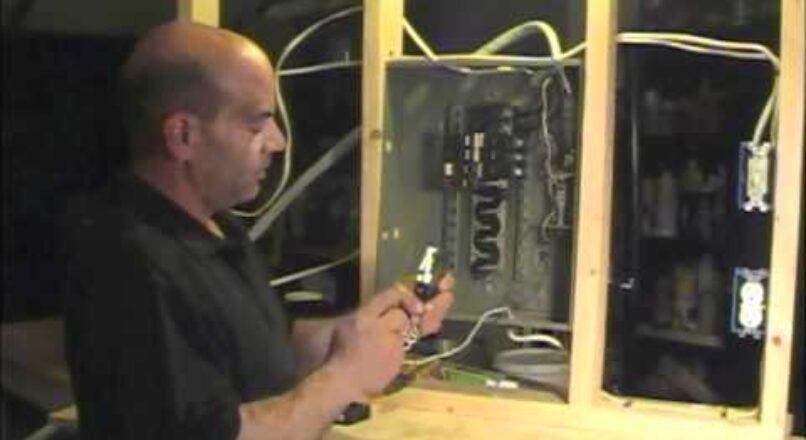

INSTALL OK now you remove the breaker from the panel for the circuit that needs AFCI protection. OK, simple just install the AFCI breaker back in the same slot you just made. Insert the hot wire back on the new breaker. All good till this point right. OK but now you have a extra wire, that funky looking white pigtail.

How to install a Arc fault circuit breaker / interrupter

Watch this video on YouTube.

Now since you still have the panel cover off. Trace that black hot wire you just placed on the breaker to where it comes into the panel and notice that wire (Romex) you should have three wires in that one Romex, right? ..

You will have ground a white and that black wires. OK. Now trace the white wire and the very important neutral wire. That will be or should be going to the neutral block. Unscrew that from the block and now insert that white pigtail into the slot you just pulled that white neutral from. And insert that white neutral that is coming from that Romex into the breaker. Look at my pictures for a better explanation. How to install A Arc Fault Circuit Breaker / Interrupter Video

To install a regular breaker please see my video on that. 110 breaker.
