How To Install Cultured Stone Verniers

First, you need to know about are the tools that are needed.

Cutting the stones. You can use a carborundum, diamond blade in either a circular saw or a wet tile/brick saw. I like to use a carborundum blade in a circular saw if I’m working outside, around the house. I find that it’s easier for me to just carry it around with me as opposed to a larger wet saw that you set up on a table once and then you’ll have to go to the saw each time you need a cut. However, a wet saw will make a nicer and cleaner cut for the most part and without all that dust. But hey, you’re installing stone here, not marble. But make sure you wear that dust mask! You can also use a small grinder with a diamond blade.

Apply the stoneĀ

Let’s first start with applying the stone to a wood surface. Like your house. Before you do anything you must start with a clean surface that has only the wood showing. Now that you have that, you’ll need to staple a minimum of a 20 lb. felt paper to your house. Be sure that you overlap the edges of the felt paper by at least 2 inches and the butt ends by at least 6 inches. Make sure it’s laying nice and flat. Don’t go too crazy with this, as next you’ll be installing a 2.5 lb. galvanized expanded metal lath or mesh. Always overlap the edges like you did with the felt paper and secure it with 2″ galvanized nails spaced 5″ apart. When doing corners, you will want to cover the corner by at least 16″. When applying the mesh, you will want the grooved cups facing up. If you rub your hand over the mesh, you’ll notice that rubbing your hand is one direction it will feel rougher in one direction than the other. The rough direction is the one you’ll want to face upwards. Now you’re ready to start applying the mortar. Here you have two options, it would really depend on how thick and heavy the stone is that you’re working with. With a smaller, thinner and lighter stone you can just apply your mortar and your stone all at the same time. But with most stones that are thick, heavy and just bigger, you’ll have to apply a 1/2″ to 3/4″ thick coat of type N mortar. Apply all the mortar with at least a 12″ trowel. Then you will need a scratch coat rake. By using the rake, you will be making grooves in the mortar that the next coat will best adhere to.

Apply stone on a concrete wall.

With a concrete wall, all you need to do is apply the mortar 1/2″ to 3/4″ thick and go with it. However, no matter how good I think I am, I ALWAYS like to use an acrylic additive first. This really only costs a few dollars. It looks like milk and it’s applied with a big paint brush, real fast. What it does is well worth it. It’s more or less a glue for the wall.

Now the finishing.

Now that you’re stone is all installed, either you installed a stone that was a really tight fit and you’re done or you have big spaces that need to be grouted. If you need to grout, the best way to do this is going out a get what’s called a grout bag. I think they cost about five dollars. You simply fill the bag up with a thinner mix of the mortar you used and fill the gaps. Do small areas at first, about a 5′ x 5′ area. Then, with a joint tool or even a wooden stick, smooth out the grout lines. Now remember, you’re dealing with stone here. If you make them too smooth it will look strange. The whole idea here to make this whole project look like real stone.

Before you start, play around with the stones on the floor and try to dry fit them into your pattern. Play around with different combination’s of colors and shapes. It will make the job a look nicer and, for the most part, easier once you start applying the stones for real.

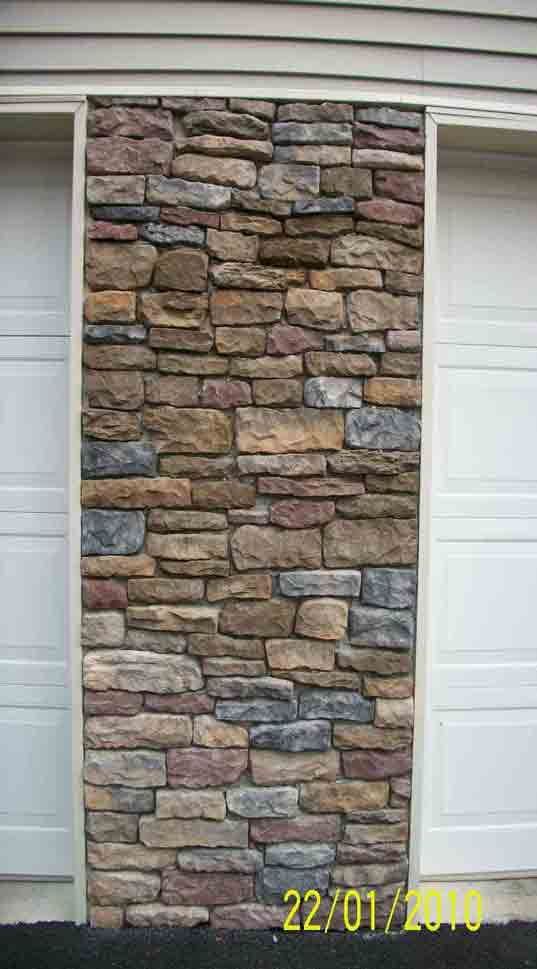

The picture below is a job that I did. The job was to fix a screw up done by eh so-called mason before me. What he did was use a metal lath over an existing concrete wall. Well, needless to say, it was a bad idea. The wall actually came down on me when I just starting to remove the top stone. The only thing that was there to hold the stone up was the vinyl siding. Yup, it hurt. So enjoy your project and wear a hard hat if you’re working with stone over your head.

For the acrylic additive. You can buy this from Home Depot or any mason supply.

acrylic additive concrete.jpg

As shown above. To make things simple, think of it as a glue, from old concrete to new

Watch a video on how to build a fireplace mantel where I install this cultured stone VIDEO LINK

How To Install Cultured Stone Verniers
5 (100%) 3 votes

Tools And Brands I Recommend

Comments ( 4 )

  1. Dominick

    I would put a scratch coat on then the stone. There are many good concrete/block sealers you can use.

  2. Subscribe to Askmediy Recently Asked Questions

  3. I’m getting ready to put cultured stone on the upper portion of a cement block fireplace. It was put up about 10 years ago and has only had Thompson’s watersealer put on it (that didn’t do much to seal it). Should I put a better sealer on it before I install the stone? Do you suggest I use diamond lath and a scratch coat, just the lath and back butter the stone or just attach the stone directly to the block?

  4. Dominick

    All sounds good to me. Your style can look for good and last a long time as well. Also nice information you added here about dusk masks. Thank you.

  5. Nice information, I recently fixed a cultured stone project, the previous installer ‘picture framed’ the back of all the stones. One thing I would like to mention, is that a dust mask is worthless, as masons dealing with silica dust, what we need to wear is a P-100 respirator. A P-95 is worthless, a P-100 blocks all of the dust, a P-95 allows the small siica dust to enter your lungs and cause scarring of the lung tissue. My re-installation of the stone I laid had no bonding agent, I used type N mortar and cut grooves into the concrete backing wall and applied a thick 1/2″ mortar joint on the back of the stone. I needed to make a head joint adjustment and I had to pop off the stone, I do hope they will last for a long time. The original installation(not mine) lasted 6 years, not bad for a ‘picture frame’ joint. I also outpointed the head-joints as I went to help even better mortar adhesion. Is it OK to tuck point the head joints as you go? I think it is a good idea for extra strength, what neggatives are there of tha?
