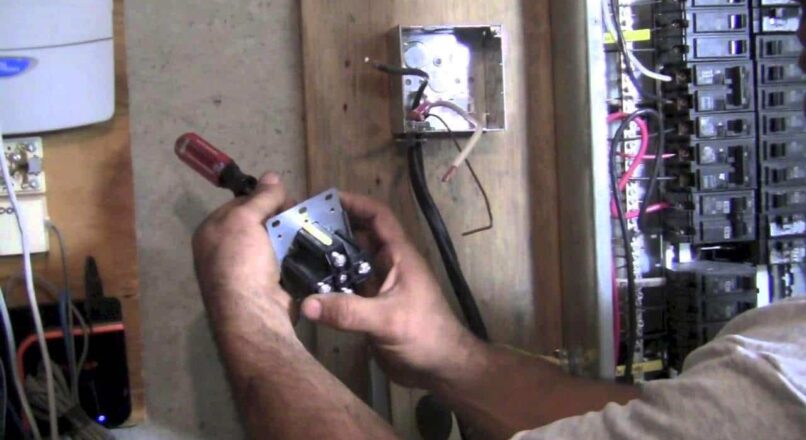

In this video, I show you how to install a 220-volt outlet using 4 wire. The fourth wire is neutral (white wire). Most dryer wires will be a 10 gauge wire for 30 amps. However, the wire shown in the video was a #6 wire for a 40 – 50 amp.
Please watch my video on how to install a 220-volt outlet (20 amp) and my other article on just wiring a dryer.
Connections to a stove, oven or dryer.
Connections to electric oven
How to Install a 220 Volt 4 Wire Outlet
In this video, I show you how to install a 220-volt outlet using 4 wire. The fourth wire is neutral (white wire). Most dryer wires will be a 10 gauge wire for 30 amps. However, the wire shown in the video was a #6 wire for a 40 – 50 amp. Please watch my video on how to install a 220-volt outlet (20
Comments ( 36 )
An alternator can not provide you will a neutral. If you don’t need a return path than a neutral shouldn’t be needed. I think about using that ground perhaps.
Hello & thank you for you Sharing the wisdom in electronics wiring I’m looking to Provide battery back up power and free energy generator power provide battery back up power and free energy generator power wired straight into my 100 amp Fusebox using a 100 Amp Double Pole Breaker , the batteries will have an Inverter or 2 totaling about 6-7000 Watts continual but my generator Will be a car alternator bypassing the DC conversion will be using straight AC current straight off the stator , how to add a neutral wire into this ? The power sauce only has positive a negative ?
You can’. Each hot leg is only 120 volts.
what would happen if you put 220 to both the hot terminals? would you fry the electronics?
What you should do is just run a sub panel from the main house. Or if you’re just trying to get power to the trailer, maybe run a sub panel from the pole to where you need the 220 power.
Hi
I have #10 wire with black white and ground. I want to put a dryer plug in. Can I use the wire I have and use the black and white as hot and just not have a neutral in the breaker box? I assume there are dryer outlets that have 3 prong or am I wrong? I am fixing to get the power company to put a pole in my mothers back yard for my camper so I need to buy a breaker box. I already have a breaker box for my camper so I guess I can just run the #10 from a 30 amp breaker from the main breaker box that the electric company will hook to to my camper breaker. Then I want to run the wire from the main box to my storage shed and put the dryer outlet in it. I will also need a 110 for a washer. So would I run two #10 2 with ground wires to the shed. One use the black for hot , white neutral and ground for the 110 and the black white as hot and ground for the 220? I know basic electric so I hope I know what I’m talking about. If not please tell me. And do it for dummies please. LOL Thanks
Well dryers need a 30 amp line. Chances are that the 220 line you have is only 20 amp so that wouldn’t work for you.
I have two 220s in my kitchen and one I’m not using. I want to run that one to the laundry room for my dryer. Laundry room might be 15 feet away. How do I go about doing it? Would I need to go underneath the house and run the wire through the floor where the dryer will be? My breaker box is outside (old house) and the extra 220 that’s in the kitchen is wired there.
No not really. Don’t place it right on the bottom plate and never right up against a appliance. And as long as the wire is in a wall you don’t need to use conduit. protection and not exposed is the idea.
I would like to wire 220V into my garage. When I run the wire, is there a specific code one should follow? For example, does the wire have to be so far off the ground or wire must be routed X distance from certain appliances? Also, does it require conduit if it is routed through walls with insulation or is the outside insulation of the wire sufficient?
Nope, not at all.
Most if not all wire is rated for 600 volts. It’s the amperage you need to be concerned with. So a quick answer to your question for the wire I think you’re talking about, no.
Can you use 110 volt wires to hook up electronic stove
Can you use 110 wires to hook up a 220 for electronic stove if it has 3 wires
Check your breaker and course that you’re reading the right wires.
On my dryer why am I reading 110 from each leg but both legs together reads 0? It turns on but won’t heat up.
There is no difference between the two hot legs at all
When installing a 220VAC outlet does it matter which leg of the 220VAC supply connects to which of the hot blades in the outlet?
Before going crazy see if your dryer can be wired for a three wire. If not you’ll have to run a whole new wire.
I have a 3 plug 220 outlet in my utility room i need to change it to 4 plug outlet for my dryer what can I do for a return path wire. There is no way to run one from the panel to the utility room because of where it’s at.
As long as you don’t need the neutral.
for a 220 breaker you should have a two pole breaker. But the two poles are tied together as one. Send me a picture if you like using the contact Dominick on the bottom of this page. And yes a 30 amp breaker will only allow 30 amps across both legs as one breaker.
My question is about breakers. I notice all the 240v breakers in my box have only one switch and not two, for example my dryer and range. But according to your videos this will require a double pole breaker. What is the difference in these breakers?
Also, if you have a double pole 30amp breaker, does that mean it will allow 30amps for each hot leg?
Thank you.
My builder installed 220V 30 amp 4 wire plug and breaker. I needed a 20 amp plug for my 5 hp 220V air compressor, so I’m changing it out, but the plug only has the two hots and the ground. Can I just connect the red and black and ground and install a cap on the white/common? Is it required to change the 30 amp breaker to 20 amps?
This would depend on the amperage. white-neutral black or red and black- hot and one ground. Ground could either be bare or green.
on a 220 volt. is the gray wire a neutral wire i have 1 black 1 red 1 gray and 1 clear wire
Each 220 volt outlet has to be on it’s own circuit. Unlike 110 volts.
I’d like to have another range outlet outside wall of my kitchen.What is easy/simple way to do that? Can I add another electric range outlet from existing (range) outlet? If so, how? Thanks for your help.
Sure you can. But you may want to change the breaker to whatever your heater needs.
Hi Dominick,
I renovated and don’t use my stove outlet anymore. Can I use my stove 4 legs 220 volt for a garage heater which is a 3 legs plug?
Thanks,
White is neutral, the return path for a 220. Black is hot and so is red. the two hots don’t have to match color but they both need to be hot from the two separate hot legs.
how would this apply for a hot tub, i am running 4 8 awg wire from a 50amp fuse to a sub panel then to the tub. i have the red and black off the fuse white common and green ground. My question is at the sub panel there is another 50amp do i put a red and black on both sides and then the other red black to the tub i match or do i match both red on 1 side and both black on the other. thanks
That’s not a problem. Just move a few breakers to a sub panel. Watch my video on how to install a sub panel.
Hello
If you don’t have the space in the breaker box to add the 220v line, what do you do next and is this considered a big problem? I have a electric dryer to hook up but I need a 220v line and one electrician said that It was a problem. Help me please!!!!!!!!!!
You would really need to start adding up all circuits in order to know if a upgrade is even needed. I would just install a new sub panel from the main panel to the garage.
can i install a subpanel in the garage of a another subpanel i need 50 am ps to run a air compressor and lights and some electrical i have 3 8ft lights and 4 4 ft lights now there is only 120v going out to the garage from the subpanel now. i know i need a new sub panel in the garage how can i do this the main box is in a bedroom rated at 150 amps and the subpanel is in the florida room now it controls the electrical in the florida room and 120 to the garage. this subpanel in the florida room has room that i can add 4 more circuits. or do i need to upgrade the main panel to 200 amps and run the garage panel from the main panel in the house
