Finding the Square of a Room or Wall, the Easy Way.

4.2/5 - (14 votes)

Finding the Square of a Room

Finding square to a room or wall that is square is just a matter of some simple math. length X’s Width, right. Of course. Like in the example below its’ a simple space of 12 feet by 20 feet =240 square feet.

simple square 862574099
Finding the Square of a Room or Wall, the Easy Way. 13

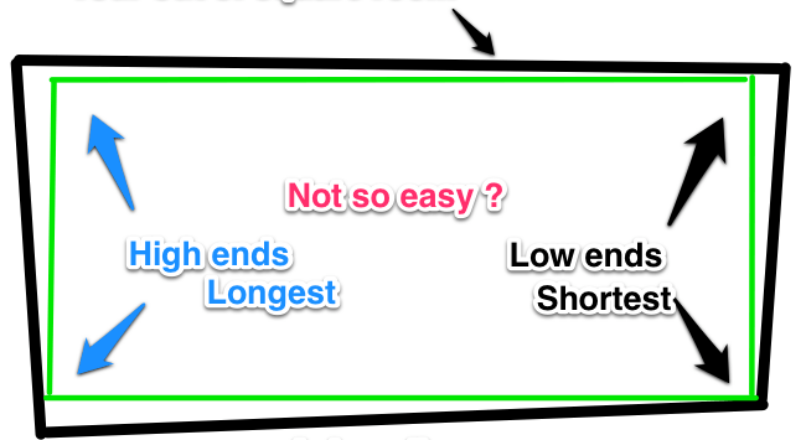

But now the out of square room or area.

Well, it doesn’t have to be so hard. Measure the from one wall to the other finding the shortest distance. Now do the other two walls.

Out of square room
Finding the Square of a Room or Wall, the Easy Way. 14

Now that you have the areas with the shortest distance measure out from the corner 3 feet and the other at 4 feet. Like in the picture below. Now measure diagonally from the three-foot and 4-foot marks. You’ll know when you are perfectly square when you have five feet.

Once you have that down it’s time to use a snap line and follow the 3 foot and 4 lines to the walls. Now you’ll really get to see just how out of square your room is.

If you were going to be installing something like laminate flooring or ceramic tile I like to snap my lines and start on the lines for the tile and then go backward in the out of square areas. However, that doesn’t work well with laminate flooring because it likes to slide all over the place. So what I do is just screw down a straight board right on the floor next to one of my lines in the direction that I’m installing the floor and then return to install it going backward.

using the 3 4 5 rule
Finding the Square of a Room or Wall, the Easy Way. 15

I would be really surprised and not trust a contractor that doesn’t know about the 3-4-5 rule. I mean didn’t everyone learn the Pythagorean theorem? LOL, Yeah I don’t think so.

But wait you’re not done. Now you have to check your work. This would be better known as racking it. Once you have all four lines made, you know the box. You will want to measure from corner to corner in an X. You’re looking for the same measurement from one side to the other. Ok, for the ones who don’t know what I mean I made a picture for you. Look lower. Yes below these words of mine.

racking 475111155
Finding the Square of a Room or Wall, the Easy Way. 16

Leave a Reply

Your email address will not be published.

11 Comments

  1. Best thing to do is measure one wall and mark centre. Measure other wall and mark centre. Take a chalk line through Centre (crosshairs). Now u can measure from wall to centre line to find measurements for flooring.

  2. This method works fine if you have a 4 sided-4 corner room. My great room in which I’m attempting to lay laminate flooring has a recess on one wall, and a bay window on the opposite wall for a total of 10 corners making it so I don’t know how to square the room….. and something is definitely off somewhere.

    Laying the first row away from the wall and snapping a chalk line doesn’t work because unless that first row (and chalk line) is square, everything else will be off.

  3. I love your site. I been restoring my kitchen myself. I want to use allure flooring mostly because we cook a lot. I like my floors clean, I understand that is allure flooring is water resistant. I want the wood look hard wood look. Do you have any advise for me.
